  • Insignia Platinum LEFT 1100mm x 700mm Offset Quadrant Steam Shower Cabin Customise Frame / Glass
Click the image to enlarge

Insignia Platinum LEFT 1100mm x 700mm Offset Quadrant Steam Shower Cabin Customise Frame / Glass by Insignia

Quick Find Code 12693507

Insignia Platinum LEFT 1100mm x 700mm Offset Quadrant Steam Shower Cabin Customise Frame / Glass

Quick Find Code: 12693507
RRP £1,849.00
Sale £0.00
£1,510.00
(inc vat)
Product Options
Customise Choose Your Glass & Frame
Select Glass Colour Option
Product Options
Save
Earn 0 reward points with this product.
Healthy Stock Levels
Express delivery is available on this product

Some Great Product Features!

  • Stainless steel 96 jet Hi-Flo overhead shower
  • Unique after shower Ozone disinfection system
  • 6mm Tinted tempered toughened glass enclosure
  • Reinforced second generation LeakFree polymer tray with steel frame and adjustable feet
  • Two EasyGlide shower doors with magnetic seals
  • Jetted bath system giving an invigorating aqua massage
  • Bluetooth connectivity from any smart device
Read Full Description »
  • Description

    Insignia Platinum LEFT 1100mm x 700mm Offset Quadrant Steam Shower Cabin Customise Frame / Glass

    The Insignia Platinum 1100mm x 700mm is another wonderfully crafted model in our 2nd generation leak free and fast build showers. Customisation elements at your fingertips, bespoke your shower to suit your own design requirements, choose your profile colour, theme colour and orientation, complementing any bathroom design especially en-suites or smaller areas where luxury couldnt have previously been thought possible. This top of the range Platinum steam shower has an abundance of superb features to boost your Insignia Shower experience. The luxurious stainless-steel monsoon rain shower engulfs you in complete water immersion. Alternatively, you have the baton style brass hand shower, available on an easy to use riser rail for optimal height setting. Want to sit and relax? Its easy with the white wood effect seat and soothing body jets. Why not take relaxation a step further with the simplicity of one touch steam, rounded off with music of your choice and your favourite Insignia aromatherapy essence infused into your steam.

    The multi-coloured roof lighting and twin speaker system activated by Bluetooth touch control, complete the total luxury package of your steam shower. With this 2nd generation platinum level, top of the range steam shower you own Insignias leak free tray design, bespoked to your choice with the plethora of features mentioned. Showering perfection for your bathroom and you know why? Because Insignia know you are worth it. Designed for people as yourself who want something special with a discerning touch.



    Product Features:

    • Measures 1100mm x 700mm x 2170mm (W x L x H)

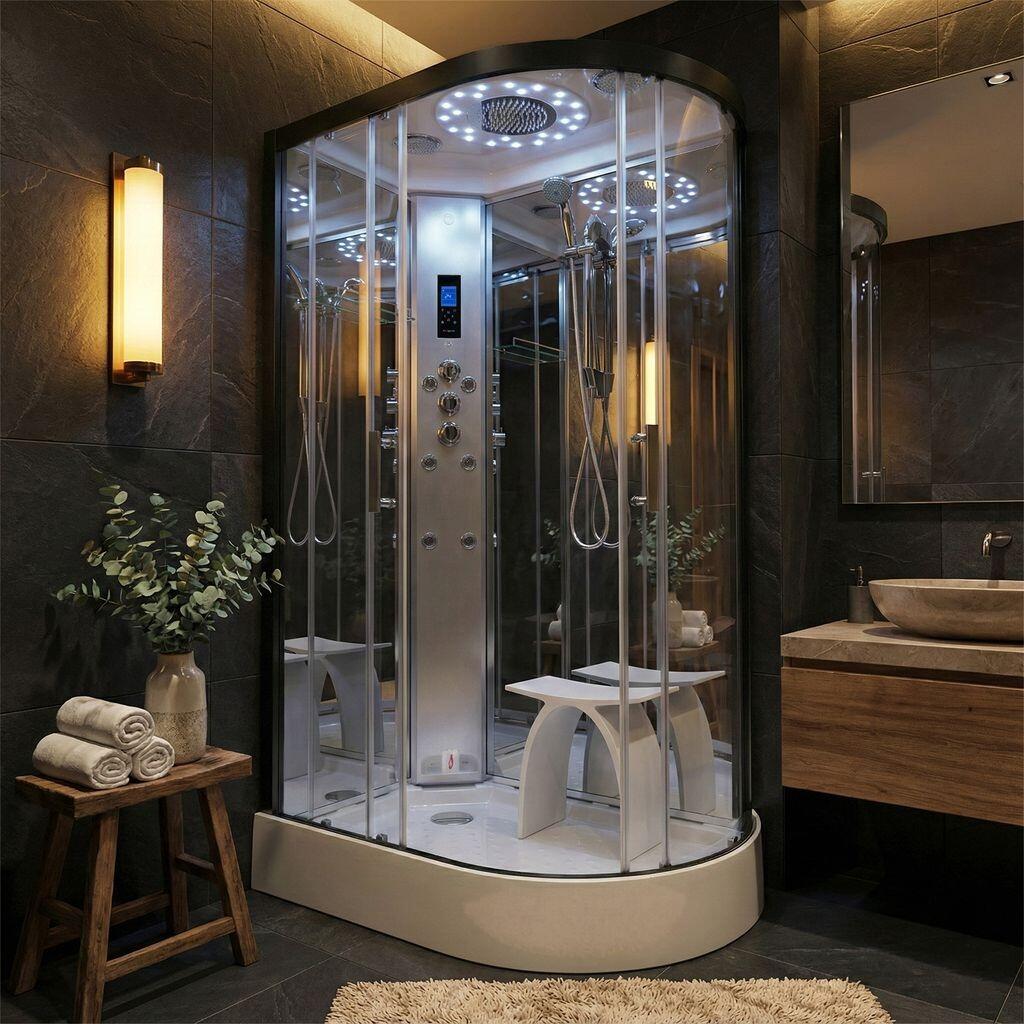

    • MAIN IMAGE SHOWS PL11 LEFT HAND Black Frame with Clear Glass PL11L-OBF-CG-S
    Characteristics:

    • Characteristics:

      • OFFSET Tray: Insignia's industry changing LeakFree tray design
      • Assembly: Fast assembly with Insignia's QuickClick build system

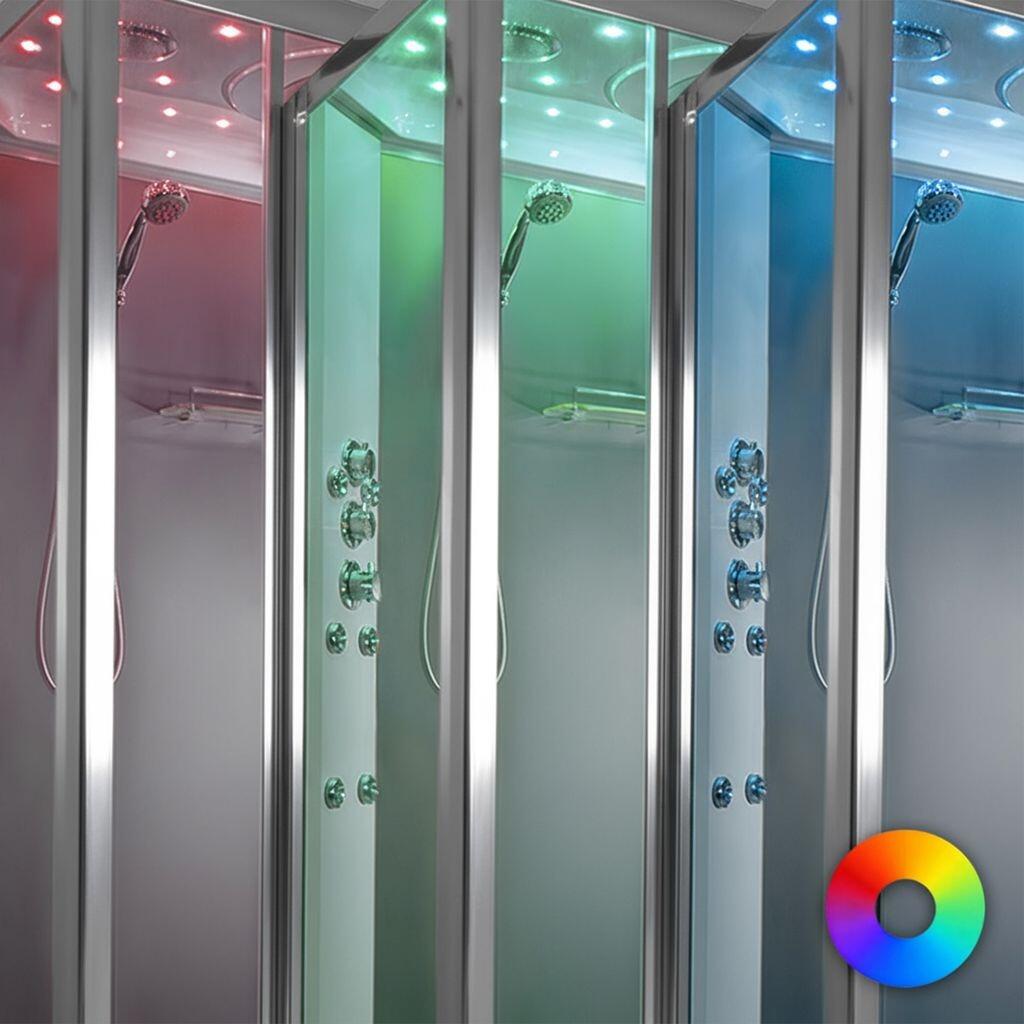

      • Customisation: Fully customisable with options for framework colour, glass colour and back panel colours for a truly bespoke shower enclosure

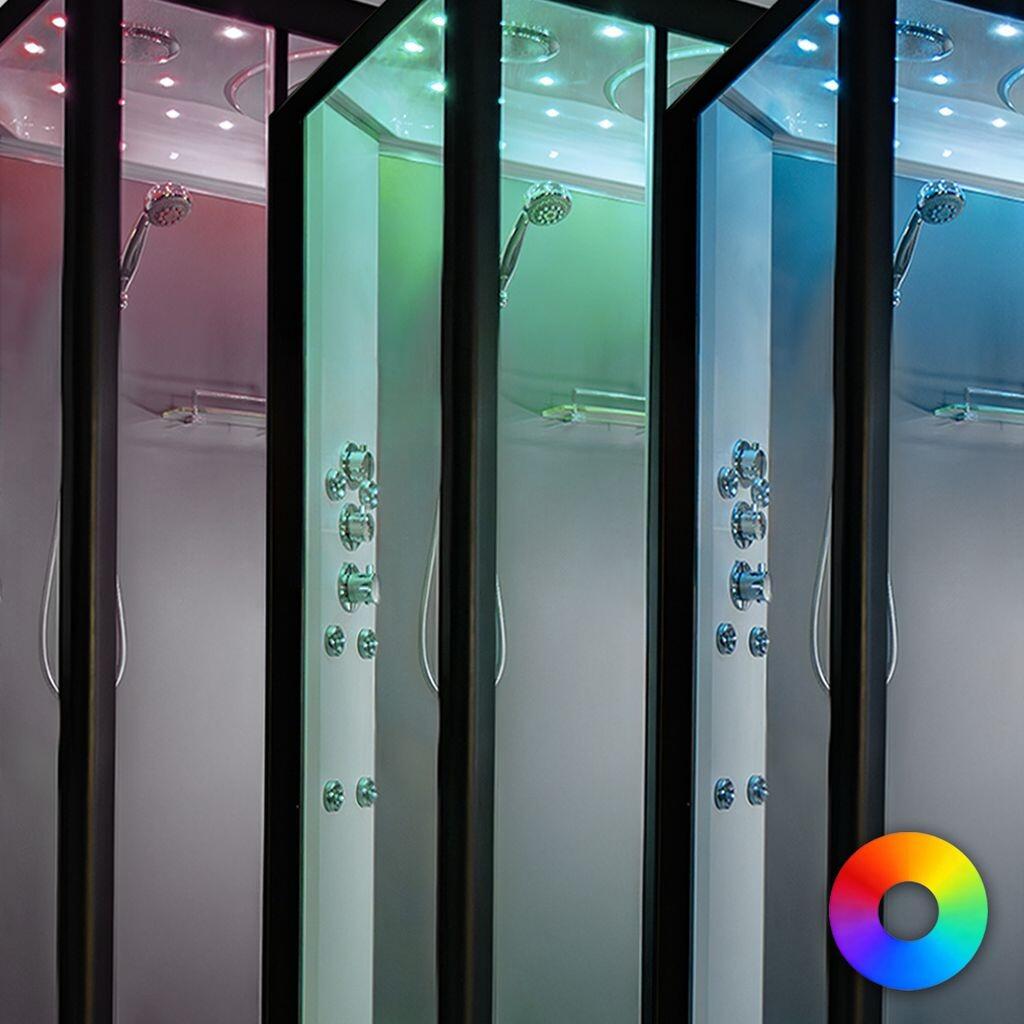

      • Frame Colour: Black/Chrome
      • Back Panel Colour: Mirror as standard - Matte and Carbon colour options available
      • Glass Colour: Clear
      • Shape: OffSet Quadrant Corner Shower Enclosure
      Electrics:

      • Bluetooth connectivity from any smart device.

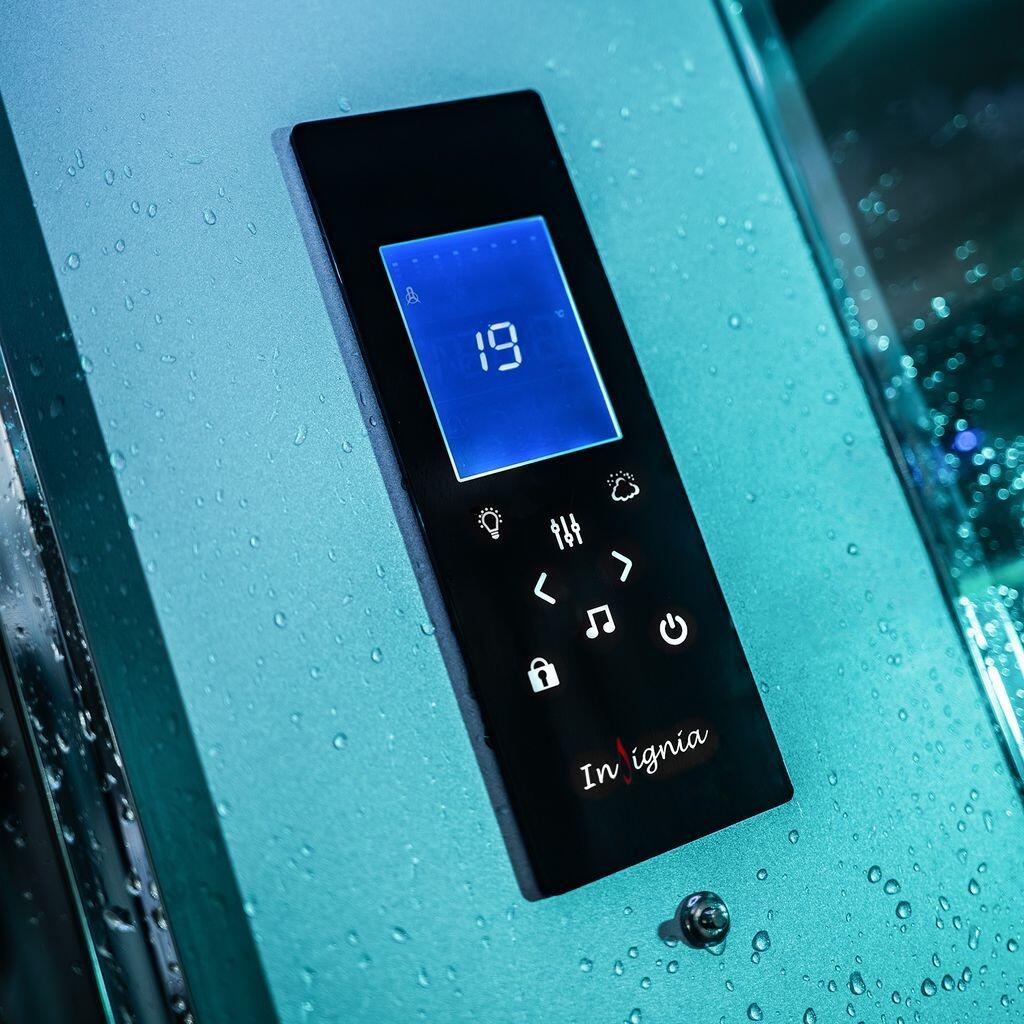

      • Innovative M touch control panel with media connections
      • Twin speaker system for optimal sound quality
      • Insignias exclusive Aromatherapy Modular Injection System - AMI
      • Chromotherapy Internal Lighting  7 colour spectrum, either fixed or scrolling
      • Unique after shower Ozone disinfection system

      Water:

      • Fast start 2.8kW Steam Generator
      • Dynamic Tri Jet Steam Technology

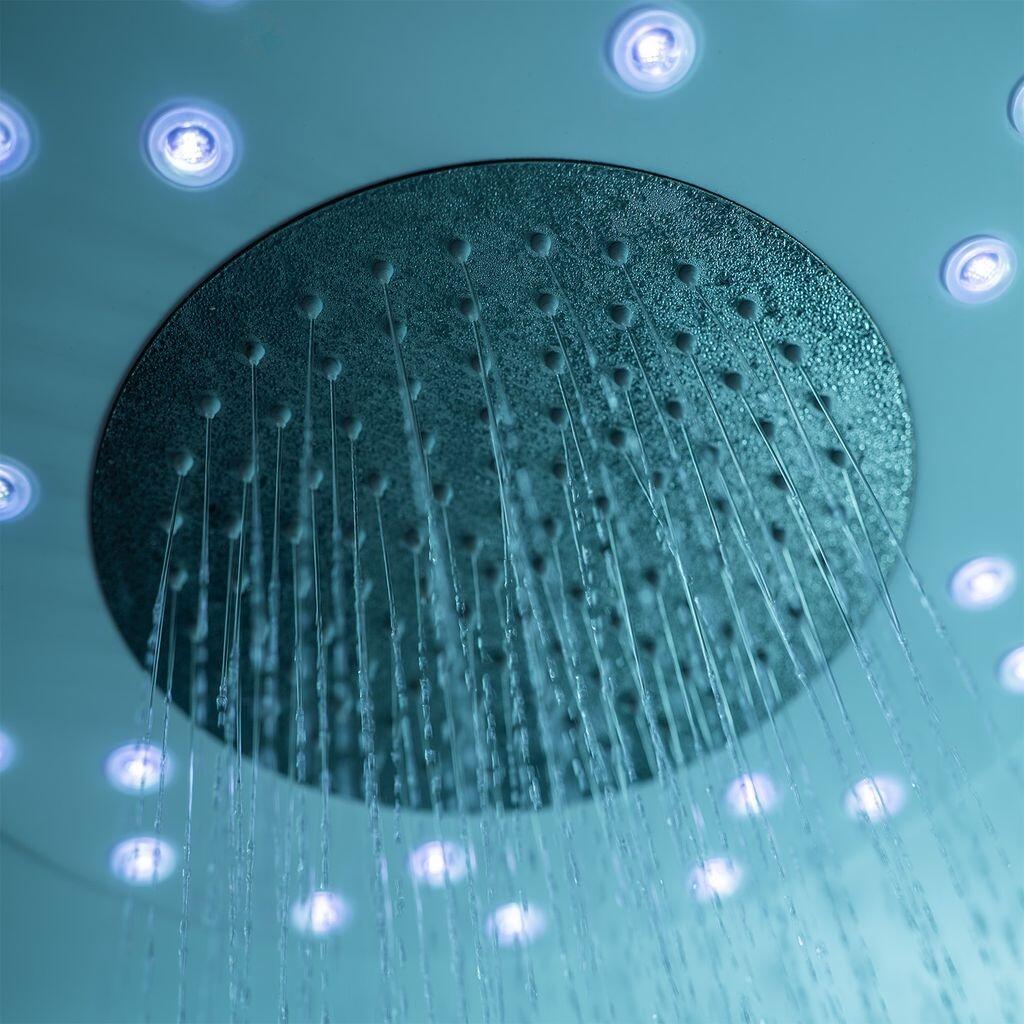

      • Stainless steel 96 jet Hi-Flo overhead shower

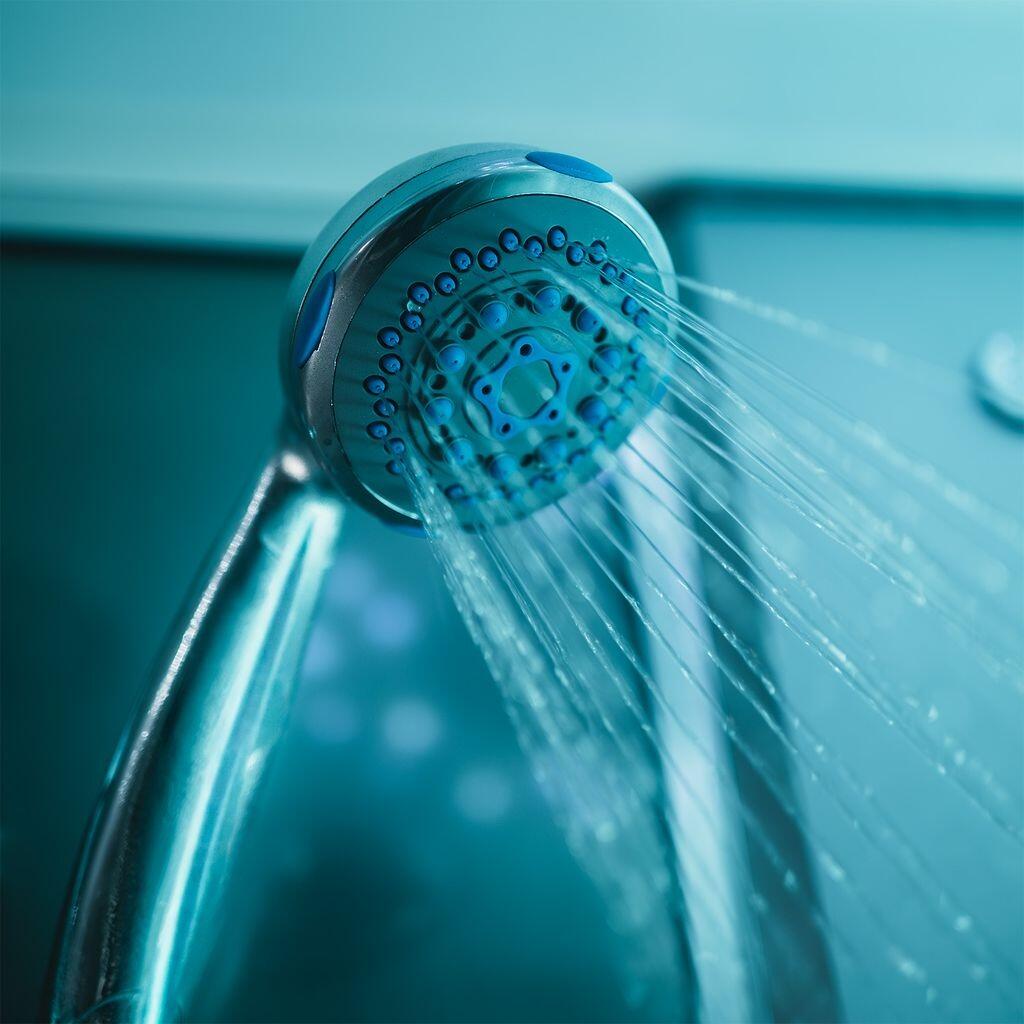

      • Microphone style hand shower with optimal height setting

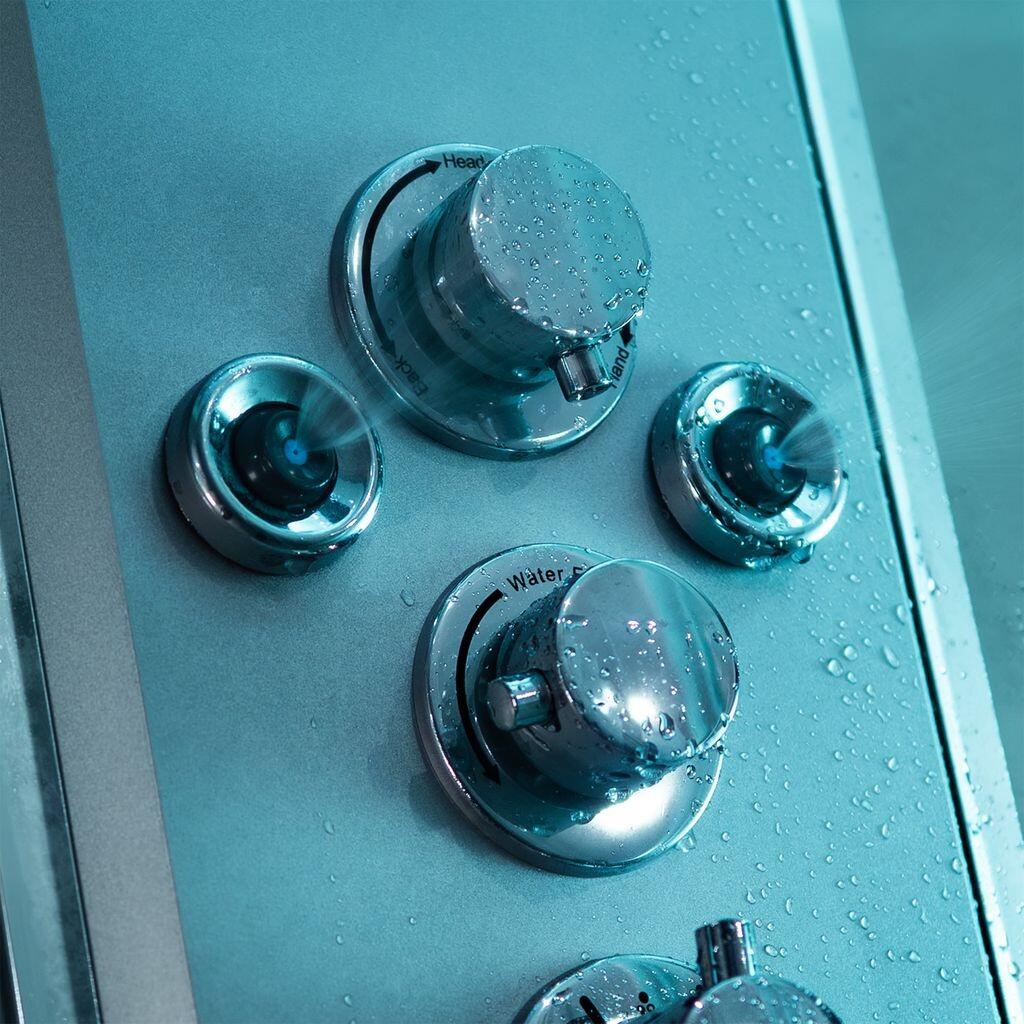

      • 6 high quality omni-directional brass body jets finished in chrome
      • Thermostatic controlled with Vernet technology
      • Hot and cold connections
      • Recommended 2.5 BAR pressure minimum
      • Do NOT exceed 3.4 BAR pressure

      Other:

      • Insignia's EasyGlide twin door wheels
      • Magnetic door seals
      • 6mm tempered glass enclosure
      • Toughened glass shelf with chrome rail
      • Reinforced polymer tray with steel frame and adjustable feet
      • Waterproof grain effect tray insert and matching stool
      • 5 Year parts warranty upon registration
    • Free Gift - Pre-Integrated Thermostatic Valve - pre-built into the shower cabin to allow you to safely regulate the hot & cold water
    • Optional PEV - Pressure Equalising Valve is designed to Balance the hot & cold water pressures for use with Combi Boilers to ensure your shower is protected against un-balanced hot & cold water pressures.  Check Here for PEV Product Info
    • Optional Shower Guard - Shower guard will protect your new investment permanently from limescale.  It also makes cleaning a lot easier and is water resistant making it easier to clean the glass, 1x Shower Guard usually is enough to cover a 3 square metre area of glass, this is normally enough to cover the shower doors and small side panels beside the doors, If you wish to apply to the glass backboard panels we would highly recommend you purchase 2x Shower Guard Packs. Any non-abrasive cleaner can be used Check Here for ShowerGuard Product Info
    • Optional Water Softener - Little Plumber is a compact, computerised electronic water softener which will descale your existing system, prevent new scale forming and save you money from the moment it is installed. Your water will also feel softer so no need for a traditional water softener.
    • Optional WRAS Approved Braided Hose - The Insignia WRAS approved flexible braided hose is an essential part of your shower. Insignia highly recommend that this essential item is included with the purchase of you shower or upgraded on your existing shower. This pack includes 2x80cm WRAS approved flexible braided hoses and 1x60cm WRAS approved flexible braided hoses. Designed for everyday usage it can withstand high levels of pressure, heat and tension. WRAS stands for Water Regulations Advisory Scheme and is a certification mark that demonstrates compliance with the high standards set out by water regulations. WRAS approval is accepted by every water supplier in the UK so you can be assured of its high quality and durability.

    Delivery Time:
    Standard Delivery is usually within 7-10 working days on all Insignia products.
    Express 2-5 working days delivery available upon request for additional cost of only £19.99.

    The Latest Insignia Manual Is Available to Download From their Website Here


    Water supply requirement: separate hot and cold inputs are required, each at a pressure of 2 - 3 Bar. NB: if the water pressure is below this range a twin negative head pump must be used to boost the hot and cold supply.

    A pump must not be used on the output of a combi boiler.

    It is essential that a fully qualified plumber install the unit in accordance with current regulations.

    Please note you must register your purchase on Insignia's Website this will ensure you receive your warranty and a speedy resolution should any problems ever arise. Please Visit http://www.insigniarange.com/warrantyreg.asp
